Ava Wilson Snap the Invisible: What a Smartphone Microscope Adapter Can Do
A smartphone microscope adapter links your phone camera to a microscope, making powerful imaging portable and affordable for students, hobbyists, educators, and field researchers.
Common uses include classroom labs, quick diagnostics, nature observation, and specimen documentation. It democratizes microscopy without heavy investment or complex training and broad access.
This article explains adapter principles, mount types, selection advice, setup and alignment tips, and image processing, annotation, and sharing techniques so you can capture clear, useful microscope photos with minimal fuss reliably.
Explore Microbes Up Close with a DIY Phone Microscope
Why Use a Microscope Camera Adapter with Your Smartphone?
Real advantages: affordable, fast, shareable
A smartphone adapter turns a device you already own into a capable imaging tool. Compared with dedicated microscope cameras (AmScope MU1000 or similar USB cameras often $150–$400), adapters plus a phone typically cost $20–$80. You keep portability—no laptop tethered to the bench—and you get instant access to powerful smartphone apps for exposure, white balance, and post-processing.
Where it shines (real-world examples)
Limitations to expect and quick tips
Actionable tips:
This sets realistic expectations so you can decide whether an adapter fits your workflow.
How Microscope Camera Adapters Work: Basic Principles
Two optical approaches: Afocal (eyepiece projection) vs direct projection
Afocal (eyepiece) mounting captures the image the eyepiece sends to your eye: you align the phone camera with the eyepiece exit pupil and photograph the virtual image. It’s forgiving (works with many eyepieces), but magnification and apparent field depend on eyepiece power, phone crop factor and digital zoom. Vignetting and light loss are common if the camera lens and eyepiece exit pupil aren’t well matched.
Direct projection (prime focus) feeds the microscope image straight to the camera sensor via the microscope’s camera port or a relay lens. This gives more consistent optical magnification, higher light throughput, and less vignetting — popular in labs with a trinocular head.
Mechanical alignment and distance
Precise centering and stable clamping prevent dark corners and blurred frames. Key steps:
Smartphone camera features that matter
Types of Adapters and Mount Designs
Clamp-style vs. sleeve and custom-fit

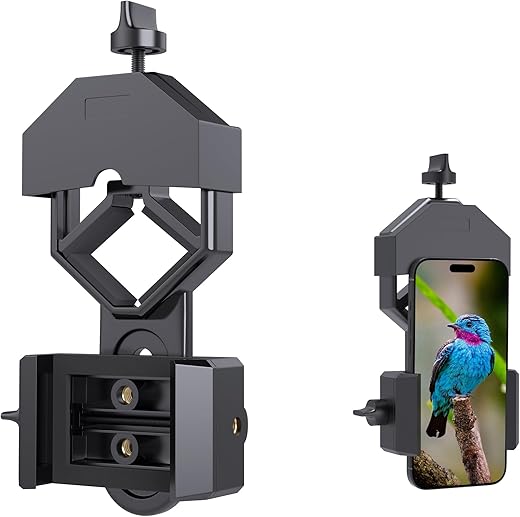

Clamp-style universal adapters (Celestron NexYZ, generic AmScope phone mounts) grip around an eyepiece and are great for one-off shots or field use. Threaded or custom-fit sleeves slip over specific eyepieces or camera ports for a more repeatable, low-vignetting result — think laboratory sleeves cut to the eyepiece diameter.
Materials and rigidity: metal, plastic, foam, silicone
Rigid mounts (anodized aluminum, steel, or ABS plastic) keep alignment steady for high-magnification work; hobbyists often prefer metal for repeatability. Flexible silicone or foam-lined holders are forgiving with odd-shaped phones and protect finishes, but can introduce slight shifts. Tip: use foam liners to avoid scratching delicate eyepieces.
3D-printed and bespoke mounts
Thingiverse and microimaging forums host many 3D-print designs tailored to specific microscope heads or phone models. They’re inexpensive and customizable — add a threading or a rotation collar — but print tolerances matter: PLA can flex; PETG or nylon prints are stronger.
Trinocular ports, quick-release, and accessories
Dedicated camera-port adapters (C-mount/eyepiece relay) on trinocular heads give direct projection and better light throughput. Useful accessories:
Practical tip: test alignment on a printed grid — if the field centers cleanly, you’ve found the right mount.
How to Choose the Right Adapter for Your Needs
Ask the right questions first
Start by answering a few practical things:
Match fit and tolerance
Measure eyepiece diameter and note your phone’s camera offset. Adapters that claim “universal” often tolerate ±1–3 mm; for high magnification you want tighter tolerance to avoid vignetting and tilt. If your phone has multiple rear lenses, confirm which lens the adapter will align.
Off-the-shelf vs. custom/3D-printed
Buying checklist and quick tips
Next: practical setup and alignment techniques to turn your chosen adapter into consistently sharp, shareable images.
Practical Setup, Alignment, and Capture Techniques
Step-by-step workflow
- Prepare the microscope: switch on stable illumination, set condenser and field diaphragm so the light is even across the field, and roughly focus the specimen at the eyepiece. A quick classroom trick: close the field diaphragm until you see its edges, then open until the field fills the view—this centers illumination.
- Secure adapter and phone: clamp the adapter to the eyepiece, then mount your phone. Tighten gently to avoid tilt; use a remote shutter or timer to prevent bumps.
Alignment and fine-tuning
Troubleshooting common problems
Photo vs. video tips
Next you’ll learn how to clean up, annotate, and share these captures efficiently.
Processing, Annotating, and Sharing Microscope Smartphone Images
Basic image processing
Start with simple edits: crop to the area of interest, correct exposure and white balance, then apply gentle sharpening. For high-magnification stacks, use focus stacking to extend depth of field—capture a z-series, then merge in dedicated software to avoid misleading single-plane images. A quick classroom trick: stack a few frames from a short video to rescue detail from a moving specimen.
Recommended apps and tools
Metadata, labels, and formats
Always save a lossless master (TIFF or DNG/RAW) and export JPEGs for sharing. Embed EXIF metadata: magnification, objective, illumination, specimen ID, date/time. Calibrate with a stage micrometer; then add a scale bar in ImageJ rather than guessing sizes.
Sharing, collaboration, and archiving
For remote demos use Zoom/Teams or live stream with OBS; cloud folders (Google Drive/Dropbox) support collaborative annotation. Archive masters with a README describing methods; cite images in reports with specimen, date, magnification, and processing steps to keep your work reproducible and trustworthy.
Next, we’ll wrap up with a final note on why this workflow turns phones into powerful microscopes.
Making the Invisible Visible with Your Phone
Adapters bridge consumer smartphones and optical microscopes, unlocking affordable microscopy for education, hobbyists, and fieldwork. With the right mount, alignment, and lighting you can capture clear, usable images without expensive camera hardware, expanding what your phone can reveal.
Start simple: test a basic adapter and workflow, then iterate with accessories or custom mounts as skills grow. Choose adapters to match needs, refine setup and post-processing, and share discoveries to inspire others and learn.
